First-class outdoor LED luminaires

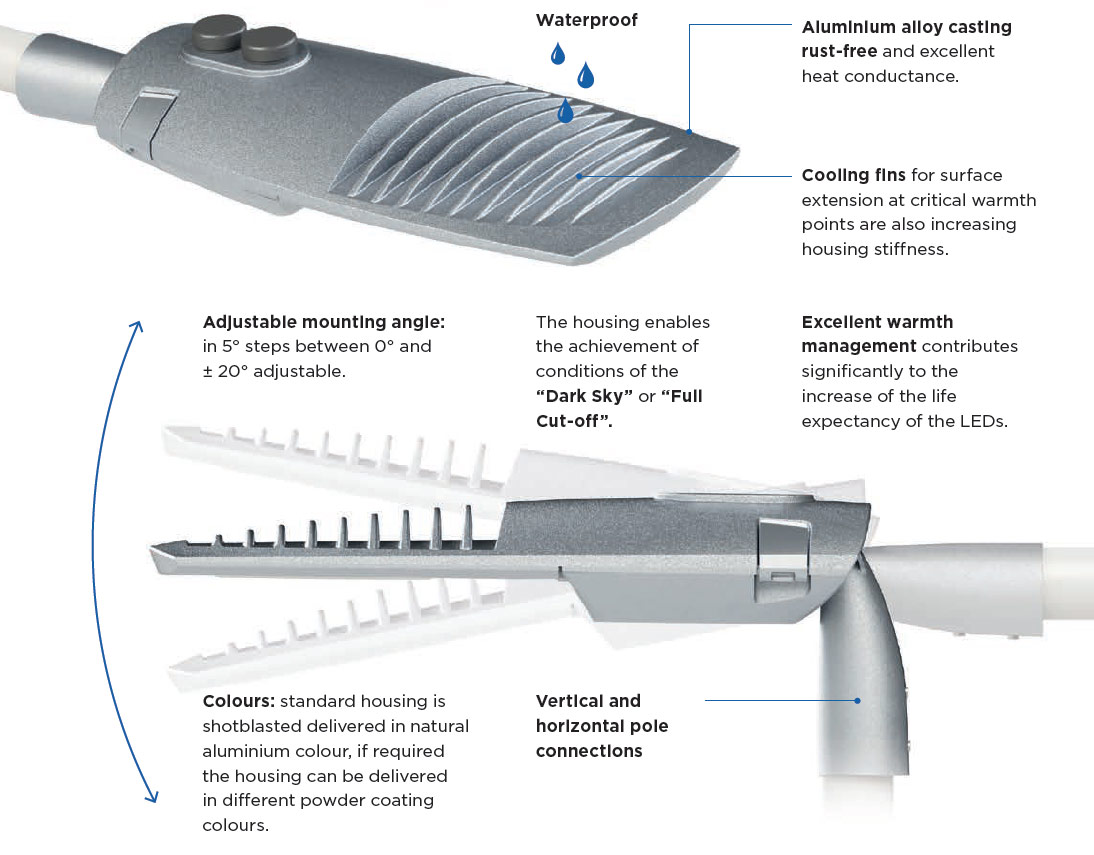

Resembling the light waves, these beautifully designed luminaires follow the principles of nature. Enduring aluminium is used for exterior housing of the luminaires which results in outstanding form and complements the present-day modern surroundings. Available in three sizes (CCL180, CCL100 and CCL035), to provide the ideal solutions for each project.

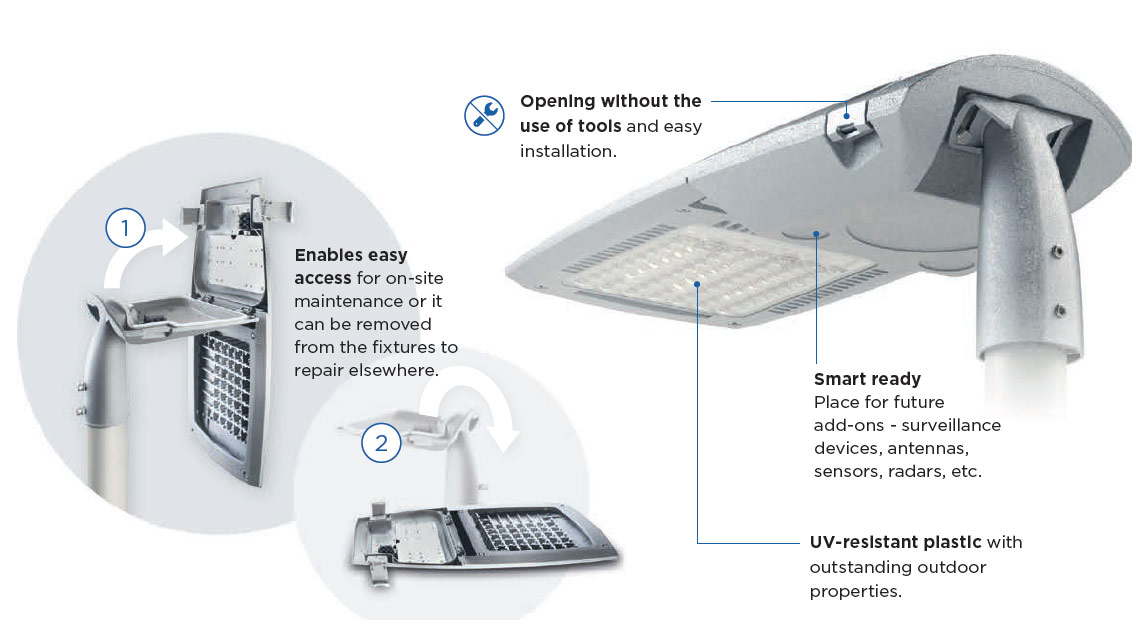

Perfecting the extraordinary lighting and providing durability and high-performance of the luminaires are the quality built-in light engines made for extreme weather conditions. To ensure luminaires answer to individual requirements the design allows future add-ons, such as surveillance devices, antennas, sensors, radars and others. All the features are enclosed in this efficient luminaire with easy access ready for routine checks or installations.
| CCL035 | CCL100 | CCL180 |
COMMON SPECIFICATIONS
| Application | Exterior public lighting, main and secondary roads, cycling and hiking trails | Exterior public lighting, main and secondary roads, cycling and hiking trails | Exterior public lighting, main and secondary roads, cycling and hiking trails |
| Light classes | ME5, ME6, S3-S6 | ME5, ME6, S3-S6 | ME5, ME6, S3-S6 |
| Suggested mounting height |
4-6 m | 6-8m and 8-10m** | 10-12 and 12-14m** |
FOTOMETRIE
| Number of LEDs | 12 | 36 | 64 |
| Luminous flux | up to 4386 lm | up to 12530 lm | up to 22554 lm |
| Efficiency | up to 125 lm/W | up to 125 lm/W | up to 125 lm/W |
| Color temperature | 4000K (optional 3000K and 5000K) |
4000K (optional 3000K and 5000K) |
4000K (optional 3000K and 5000K) |
| CRI | ≥ 75 | ≥ 75 | ≥ 75 |
| Optic | Acrylic UV resistant lenses | Acrylic UV resistant lenses | Acrylic UV resistant lenses |
| Light diffusion | Asymmetrically | Asymmetrically | Asymmetrically |
| Photobiological safety | Class 2 | Class 2 | Class 2 |
| ULOR | at inclination 0° equals 0% | at inclination 0° equals 0% | at inclination 0° equals 0% |
TECHNICAL PROPERTIES
| System power | up to 35 W | up to 100 W | up to 180 W |
| Power supply | Constant Current | Constant Current | Constant Current |
| Burden on individual LED | max. 3 W | max. 3 W | max. 3 W |
| Overvoltage protection | 20kV | 20kV | 20kV |
| Surge protection | 10kA | 10kA | 10kA |
| Dimming | Stepless dimming 0-100%* | Stepless dimming 0-100%* | Stepless dimming 0-100%* |
| Lifetime | over 100 000 h | over 100 000 h | over 100 000 h |
| Energy class | A+ | A+ | A+ |
CERTIFICATES AND STANDARDS
| IP | 66 | 66 | 66 |
| IK | 08 | 08 | 08 |
* SmartBox option (ClassicBox with 4 levels of dimming available.)
** with optional optics
STANDARD REQUIREMENTS
CE characterization / EMV guide lines / Photobiologic reliability (Riskclass 2)
| IP66 | IK08 |  |
 |
A+ | Ar | ISO 14001: 2004 |
ISO 9001: 2008 |
class II |
