Linear LED lighting
DREAMLINE is an innovative LED lighting system for trunking, which provides optimized lighting application solutions for the hypermarket, shopping mall, chain-store and supermarket industry, as well as for warehouse, education and industrial applications.
The system comprises of trunking rails, modules and accessories. The trunking comes in pre-wired sections that provide power and control signals to the lighting modules. Modules are split into 2 types: modules for lighting and modules for other functions. The system also incorporates livefeeds and end-stops, various suspension and surface mounting kits, as well as L,T&X node connectors for multi-directional connection.
TRUNKING RAIL
DREAMLINE requires minimal wiring joints compared to the installation of individual luminaires. This can drastically reduce labour costs and efforts. Mounting rails are available in 1,2m, 1,5m, 2,4m or 3,0m lenght to be selected according to spatial and configuration requirements.
Wiring
| Trunks are pre-wired during manufacturing with 5-, 7-, or 11-pole, equipped with fastened connectors that enable fast, no tools connection of multiple rails. |  |
LED MODULE
Interchangeable luminaires

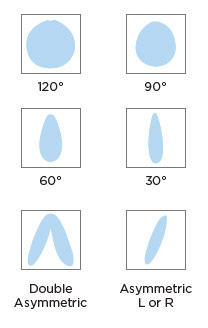

Optical distribution
| 6 different optical distributions allow DREAMLINE to be installed wherev er you require between3-20m in height. |  |
TECHNICAL PROPERTIES
| Model | T03A12L | T03A15L |
| Length | 1150 mm | 1437 mm |
| Material | Aluminum | Aluminum |
| Product Size (L*W*H) |
1150*64,5*20 mm | 1437*64,5*20 mm |
| Power | max. 48 W | max. 72 W |
| Voltage | 100~220 VAC 50/60 HZ |
100~220 VAC 50/60 HZ |
| Lumen output | max. 6200 lm | max. 8900 lm |
| PF | > 0,97 | > 0,97 |
| CRI | 83 | 83 |
| Colour temperature |
3000-6500K | 3000-6500K |
| Weight | 1,7 kg | 2,1 kg |
ACCESSORIES
|
Fixing accessories |
 |
|
Node connectors |
 |
|
Living up |
 |
| IP56 | IP20 |  |

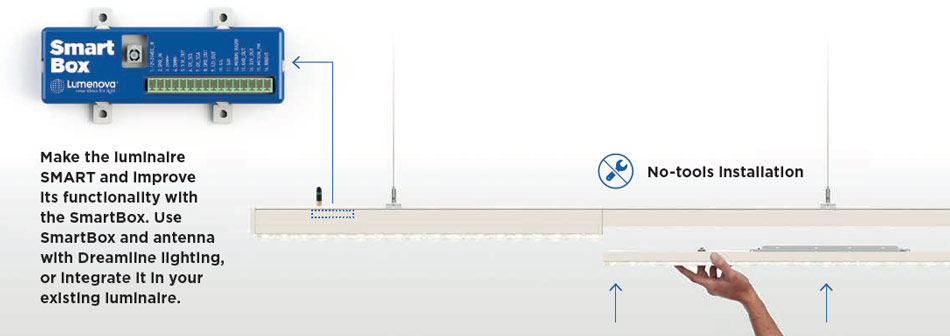

SMART LINK |
