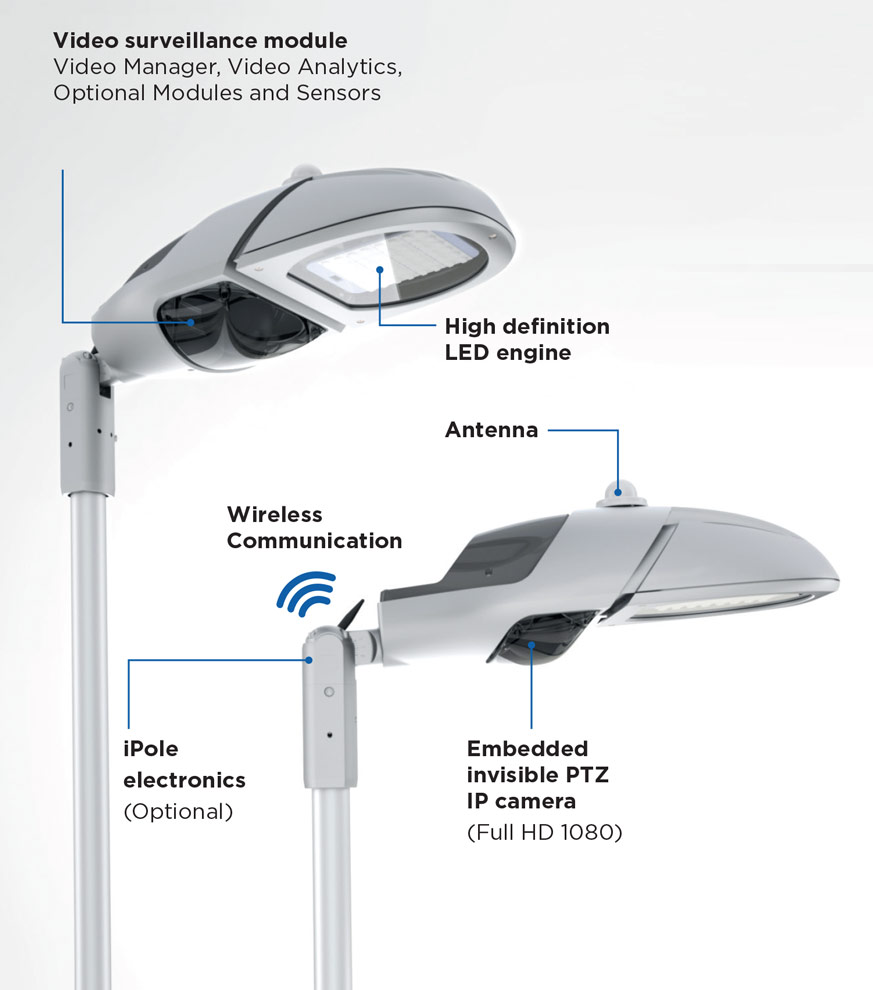

Street luminaires with invisible camera
Athina combines customized value added services with an embedded invisible CCTV system (audio and video) to provide “safety and security” via the outdoor lighting infrastructure offering the perfect combination of LIGHT (LED), COMMUNICATION (public access and works, system operations, public safety, public database, network management center, etc.) and high tech INFORMATION (control room).
SPECIFICATION OVERVIEW
| Main supply | 230 V / 50 Hz |
| High voltage peak protection | 10 KV |
| LED dimming interface | 1-10 V |
| RF comms lighting | 868 MHz self healing mesh |
| RF comms CCTV | RF 1,9 -5,9 GHz |
| Ambient temperature ta | -25° C / 40° C |
| Polar extreme version pta | -55° C / 40° C |
| Tropical extreme version tta | -25° C / 55° C |
| Load switching | 2 Relais 10 A |
| Redundancy | Light Sensor |
Advantages:
- Embedded invisible IP Camera
- Optimized LED lightning
- CCTV security and analytics
|
Urban Areas |
Industrial Areas |
|
Street |
Railroad Crossing and many more! |
THE BRAIN OF SAFE CITY
- Enhanced command and control over the city or the plant by CCTV
- Protection against crime and traffic violence incl. statistics
- Customized CCTV solutions with optional camera/video/surveillance features
- Traffic control (vehicle speed detection, license plate recognition, section control)
| 12kg | Pole size up to 60 mm |
